Square Tension Fabric Arch – QuickFit Essential Series

Choose a complete display package, replacement graphics for existing compatible hardware, or the aluminum frame without a printed graphic. Custom graphics are produced in full colour using dye-sublimation printing and sewn into a fitted, zippered pillowcase-style cover that stretches over the assembled frame.

For double-sided packages, custom branding is printed on both the exterior-facing and interior-facing surfaces of the arch, helping your message remain visible as visitors approach, enter and move through the display.

-

Complete Display – Single-Sided Graphic

A complete portable fabric arch package with full-colour custom branding on the primary exterior-facing surfaces. The reverse and interior-facing side of the graphic remains unprinted white.

Package includes:

• Lightweight 32 mm aluminum tube frame
• One custom-printed single-sided zippered tension-fabric graphic
• Unprinted white reverse and interior-facing graphic surfaces
• Soft carry bag
• Assembly instructions

Recommended for: Inline trade show booths, entrances positioned against a booth wall, stage entrances and event spaces where visitors primarily approach the arch from one direction.

-

Complete Display – Double-Sided Graphic

A complete portable fabric arch package with full-colour custom branding on both sides of the structure, providing increased visibility from the exterior and interior of the arch.

Package includes:

• Lightweight 32 mm aluminum tube frame
• One custom-printed double-sided zippered tension-fabric graphic
• Full-colour printing on the exterior-facing surfaces
• Full-colour printing on the interior-facing surfaces
• Soft carry bag
• Assembly instructions

The artwork can be coordinated across both sides of the arch to create a continuous branded entrance and a professional visitor experience.

Recommended for: Open trade show booths, island exhibits, corporate events, brand activations and high-traffic spaces where the arch will be viewed from multiple directions.

-

Replacement Graphic Only – Single-Sided

Includes one replacement single-sided zippered tension-fabric graphic for an existing compatible Square Tension Fabric Arch – QuickFit Essential Series frame.

The primary exterior-facing surfaces are custom printed in full colour, while the reverse and interior-facing surfaces remain unprinted white.

Package includes:

• One custom-printed single-sided zippered tension-fabric graphic
• Unprinted white reverse and interior-facing graphic surfaces

The aluminum frame, carry bag and assembly instructions are not included.

Recommended for: Updating an existing arch for a new promotion, seasonal campaign, product launch, trade show or corporate event when branding is primarily required on the exterior-facing surfaces.

-

Replacement Graphic Only – Double-Sided

Includes one complete replacement double-sided zippered tension-fabric graphic for an existing compatible Square Tension Fabric Arch – QuickFit Essential Series frame.

Both the exterior-facing and interior-facing surfaces are custom printed in full colour, providing branding throughout the complete walk-through display.

Package includes:

• One custom-printed double-sided zippered tension-fabric graphic
• Full-colour printing on the exterior-facing surfaces
• Full-colour printing on the interior-facing surfaces

The aluminum frame, carry bag and assembly instructions are not included.

Recommended for: Completely refreshing an existing fabric arch or preparing it for a new brand, campaign or event where visibility is required from both sides.

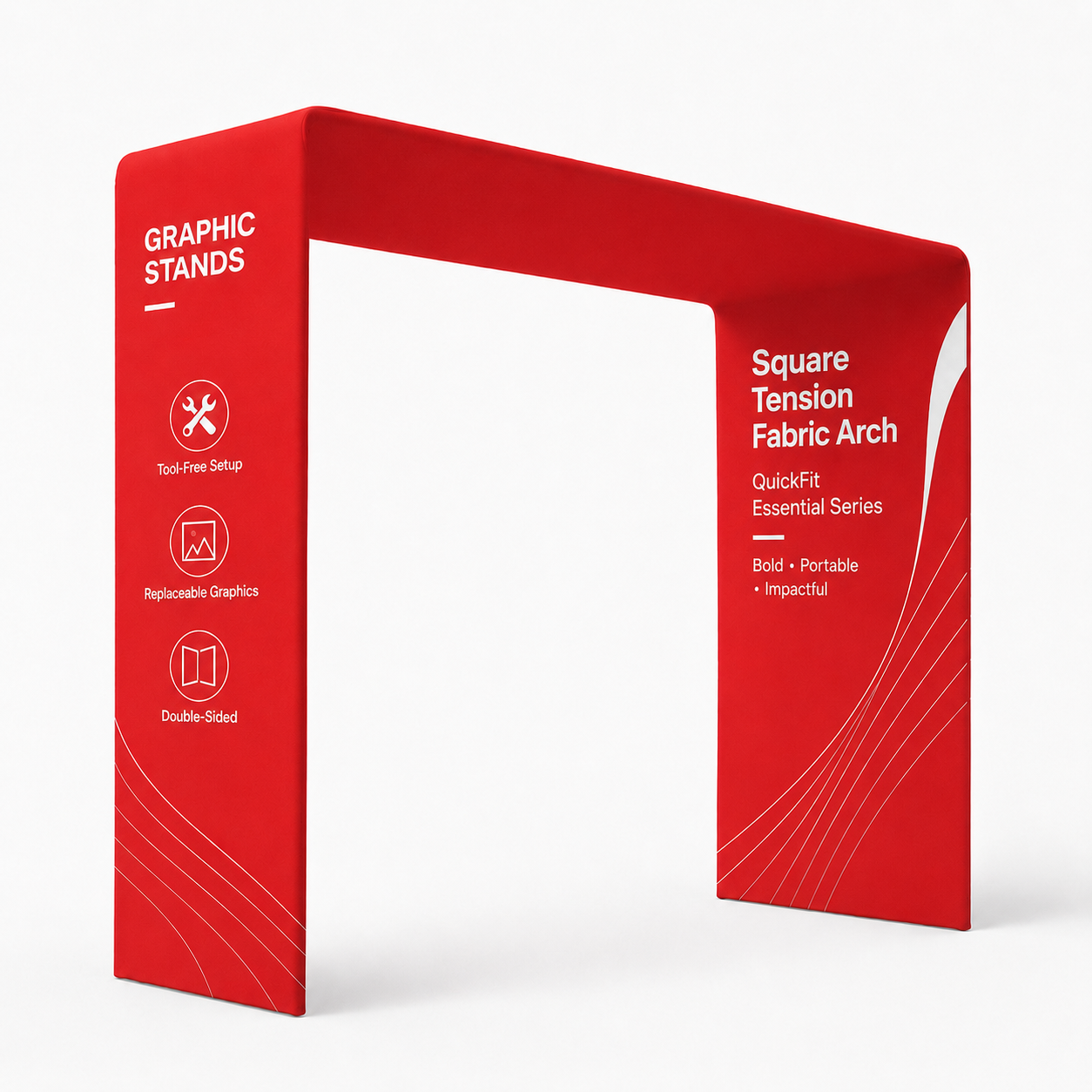

7.9 ft × 7.5 ft Square Tension Fabric Arch

Overall Display Dimensions: 94.49″ W × 90.55″ H × 39.37″ D
(2400 × 2300 × 1000 mm)

Tube Frame Dimensions: 94.49″ W × 90.55″ H × 39.37″ D
(2400 × 2300 × 1000 mm)

Finished Graphic Dimensions: 275.59″ L × 39.37″ H per graphic face
(7000 × 1000 mm)

Full Artwork Size with Bleed: Refer to the official Graphic Stands artwork template supplied for this model. Do not use the finished graphic dimensions as the artwork canvas.

Package Dimensions: 44.09″ L × 10.43″ W × 10.43″ H
(1120 × 265 × 265 mm)

Package Weight: 35.2 lb
(16 kg)

The assembled and shipping measurements align with the currently published product data and the manufacturer’s rounded specifications of approximately 94″ W × 91″ H × 39″ D, packed at 10.43″ × 10.43″ × 44.09″ and weighing 35.2 lb.

-

Important production notes

• The graphic dimensions apply per artwork side.
• A single-sided package requires one custom-printed artwork side; the opposite portion remains unprinted.
• A double-sided package requires two artwork sides. The same design may be repeated or separate artwork may be supplied for each side.
• Submit artwork using the official product template rather than creating a rectangular file directly from the assembled frame dimensions.
• Keep logos, text and other important elements away from seams, zipper areas, corners and the lower edges of the arch.
• The 1030 × 7560 mm file currently linked in the instruction document should not be offered as the Graphic Stands artwork template for this 7.9 ft-wide product until the dimensional conflict is resolved.

Before Assembly

• Choose a clean, dry and level indoor surface with enough overhead space to assemble the 7.9 ft × 7.5 ft Square Tension Fabric Arch – QuickFit Essential Series.
• Keep the printed fabric graphic away from dirty floors, liquids, sharp tools and rough surfaces.
• Remove all frame sections from the carry bag and arrange them according to their matching identification labels.
• Inspect the aluminum tubes, spring buttons, connectors and graphic before assembly. Do not use components that appear bent, cracked or damaged.
• For easier handling of the large frame and fabric graphic, two people are recommended for assembly.
• Confirm that the graphic orientation is correct before pulling it over the frame, particularly when using different artwork on each side.

-

Tool-Free Assembly Instructions

1. Lay out the frame sections
   Arrange the aluminum tubes on the floor according to their matching labels. Position the vertical sides, upper cross-members and connecting sections in their approximate assembled locations.
2. Connect the aluminum tubes
   Align the matching tube sections and slide the expandable connector into the adjoining tube. Press the spring button while joining the sections, then continue sliding the tubes together until the button clicks securely into the corresponding opening.
3. Assemble the two vertical sides
   Connect the labelled tube sections for each side of the arch. Keep the structures supported while the remaining frame components are being installed.
4. Connect the upper frame sections
   Join the horizontal and curved upper tubes to form the top of the arch. Connect the upper structure to both vertical sides and confirm that every spring button is fully engaged.
5. Secure the internal connectors
   Attach the cross-frame connectors in their designated positions. Check that all tubes are fully inserted and that the assembled frame stands evenly on the floor.
6. Prepare the fabric graphic
   Fully open the zipper and locate the top, front and interior sides of the graphic. For double-sided graphics, confirm which artwork should face the main approach direction.
7. Install the graphic cover
   Beginning at the top of the frame, carefully pull the pillowcase-style fabric graphic over the upper structure. Work gradually down both sides, alternating from one side to the other to maintain even tension.
8. Close the graphic
   Align the lower edges and close the zipper slowly without forcing it. Keep the fabric and zipper teeth properly aligned while fastening the cover.
9. Complete the installation
   Smooth the fabric by hand and adjust its position until the seams, corners and printed artwork are aligned. A garment steamer may be used after installation to reduce minor wrinkles and fold lines.

Do not force the tubes or graphic into position. When a connection does not fit correctly, confirm that the matching labelled sections are being used and that each tube is inserted in the proper direction. The frame uses click-together aluminum tubes with spring-button connections and requires no specialized tools.

-

Graphic Care

• Handle the tension-fabric graphic with clean, dry hands.
• Keep the graphic away from sharp objects, rough surfaces, adhesive materials and excessive heat.
• Machine wash in cold water using a gentle cycle and mild detergent.
• Do not use bleach.
• Tumble dry using a low-temperature setting.
• Make sure the fabric is completely dry before reinstalling or storing it.
• To reduce wrinkles, reinstall the graphic on the assembled frame and carefully use a garment steamer.
• Keep the steamer moving and avoid concentrating heat on one location for an extended period.
• Store the graphic clean and dry. Fold it loosely along existing fold lines or carefully roll it when space permits.
• Do not store damp graphics, as trapped moisture may cause odours, staining or fabric damage.

The graphic is removable and replaceable, allowing the frame to be reused for future campaigns, events and branding updates.

-

Frame Care

• Wipe the aluminum frame with a soft, clean cloth after use.
• For light dirt or fingerprints, use a slightly damp cloth and dry the frame completely before storage.
• Do not use abrasive pads, harsh chemicals or strong solvents on the aluminum tubes, connectors or spring buttons.
• Keep sand, dirt and debris away from the tube openings and connector mechanisms.
• Periodically inspect the spring buttons and connecting points to make sure they move freely and lock securely.
• Do not drag the assembled arch across the floor.
• Do not sit, stand, climb or hang objects on the frame.
• Avoid bending or forcing the tube sections during assembly and disassembly.
• Replace damaged components before the display is used again.

-

Disassembly and Storage

1. Place the arch on a clean, dry and level surface.
2. Fully open the graphic zipper.
3. Carefully lift the tension-fabric graphic upward and remove it from the frame without pulling against sharp corners or connectors.
4. Confirm that the graphic is clean and completely dry before folding or storing it.
5. Support the upper structure while disconnecting the frame.
6. Press each spring button and gently separate the matching tube sections.
7. When a connector is under tension, push the joined tubes slightly toward one another before pressing the spring button again and separating them.
8. Do not twist, bend or force the aluminum tubes apart.
9. Return the frame sections to the soft carry bag in an organized manner to prevent scratching and connector damage.
10. Store the graphic separately within the bag when practical, keeping it away from sharp tube ends and hardware.
11. Store the complete display in a clean, dry, temperature-controlled location.
12. Do not place heavy objects on top of the carry bag during transportation or storage.

The click-together frame separates into compact sections and fits into the included soft carry bag for transportation and storage.

-

Indoor or Outdoor Use

This tension-fabric arch is designed for indoor use in controlled environments such as trade shows, conventions, conferences, retail spaces, corporate events and indoor brand activations.

Do not use the display outdoors or in areas exposed to wind, rain, snow or other weather conditions. The lightweight freestanding frame does not have a published outdoor wind rating or an integrated ballast system.

When used indoors:

• Position the arch on a firm, level surface.
• Keep it away from exterior doors or other areas where strong air movement may occur.
• Maintain a clear walkway around and through the arch.
• Do not use the structure to support lighting, signage or suspended accessories unless those components have been specifically approved for the display.
• Relocate or dismantle the arch if it becomes unstable or could be struck by equipment, carts or heavy visitor traffic.
